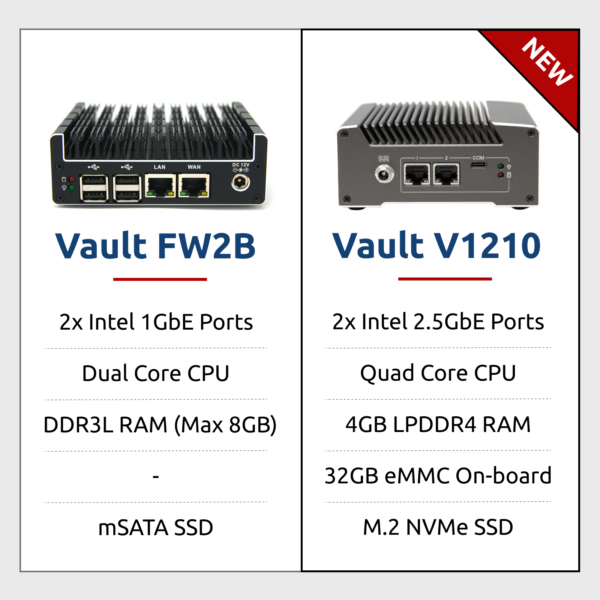

FW2B – 2 Port Intel ® J3060


  • Intel Celeron® J3060 Dual Core at 1.6 GHz (Turbo 2.48 GHz)
  • 2 Intel® Gigabit i211-AT Ethernet NIC ports
  • AES-NI
  • 25% smaller than the original Vault at only 4.3″ x 4.1″ x 1.5″
  • Fanless and Silent
  • Included Power Supply, VESA mount kit, Serial Console Cable, Quick Start Guide

Support and Documentation

SKU: FW2B Categories: , Tag:


The Vault is a small form factor PC built for use as a firewall / router.  The FW2B is based on a 2 network port design that leverages a low power, but versatile Intel Celeron J3060 CPU.  This CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption.  The Vault uses standard Intel components (including Intel network ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects.  The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments.  Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool.

The FW2B can accommodate up to 8GB of DDR3L-1600 RAM and 1TB mSATA storage drive.

For more information on tested OS compatibility with the Vault, please see this link.


Models FW2B
CPU Intel Celeron J3060 (64 Bit, 1.6 GHz, 2 Cores, 2 Threads, 2MB L2 Cache)
GPU Integrated Intel Clear Video HD Technology
AES-NI Supported
Memory and Storage
RAM 1x SO-DIMM DDR3L-1600, 1.35v, Max 8GB
Storage 1x mSATA SSD, Max 1 TB
Optional Storage 1x Internal SATA Header
External I/O
Networking 2x Intel i211-AT Gigabit Ethernet, RJ-45
USB 2x USB 3.0, 4x USB 2.0
Wireless Optional, PCIe WiFi or 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
COM Port 1x RJ45 COM Port
Display 2x HDMI
Power Input 12V DC, Illuminated Power Button (Blue)
Power Indicator 1x Power LED (Green)
Activity Indicator 1x HDD Activity LED (Red)
Internal I/O
SATA 1x Internal SATA
Wireless Optional, PCIe WiFi or 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
CPU Fan Header None
Wireless Socket 1x MINI PCIe for USB WiFi
Chassis Description Fanless, Aluminum, Black
Dimensions 4.5 x 4.3 x 1.5 in, 115 x 107.5 x 39 mm
Mounting Options Desktop, VESA
Weight 1.1 lbs, .5 Kg
Shipping Weight 2.6 lbs, 1.2 Kg
Max Power 12W
Emissions FCC Part 15
Peripherals and Accessories
External Mounting Bracket 1x VESA mounting bracket for monitor or wall
Power Supply 12V / 3.33A Switching Power supply (110-240V @ 50-60Hz)
Power Cord US Power Cord (NEMA 5-15P, IEC 320 C13/C14)
SATA Cables N/A
Serial Cable 1x RJ-45 to DB9 Serial Cable
