Protectli Vault – 4 Port

V1410 angle

The mid-range Vault, ideal for small teams and companies.

  • Intel® J3160, J3710, J4125, N5105, or J6412 Quad Core up to 2.7 GHz
  • Up to 8GB DDR3 RAM & up to 32GB DDR4 RAM
  • 4 Intel® Gigabit Ethernet NIC ports, or 4 Intel® 2.5 Gigabit Ethernet NIC ports
  • AES-NI

  • coreboot supported
  • Fanless and Silent

How It Stacks Up

The 4 Port Vaults (FW4B, FW4C) come in the same chassis as our 2 Port Vault, but allow for additional ethernet connections. Like all Protectli Vaults, they are fully open source ready and operating system agnostic.

On the hardware side, they come with SSDs throughout and absolutely no fans, so you can place Vaults anywhere.

VP2400 measurements

Compact

starts from 1 11/16 x 4 9/16 x 4 1/4 inches “tall.”

Light-Weight

from 1.25lbs ‘heavy’.

Low Power

10W power usage.

Performance Benchmarks

The 4 Port Vaults are powerful devices and include plenty of ways to customize.

More performance data on the 4 Port Vaults:

Avg CPU Passmark Score – V1410:

v1210 passmark

Single Thread Rating: 1510

The 4 Port Vaults are powerful devices and include plenty of ways to customize.

More performance data on the 4 Port Vaults:

Avg CPU Passmark Score – VP2420:

VP2420 passmark

Single Thread Rating: 1392

4-Port Vault vs Vault Pro (VP)

The Vault Pro series is Protectli’s new flagship platform offering additional functionality beyond raw performance:

  • Enhanced coreboot experience: Added security features (TPM Module, UEFI, netboot, vboot, measured boot and secure boot). Learn More >
  • New Generation hardware, ideal for virtualization and multi-use applications
  • Onboard eMMC for boot drive, USB-C high speed connectivity
  • M.2 SATA and SATA SSD storage options

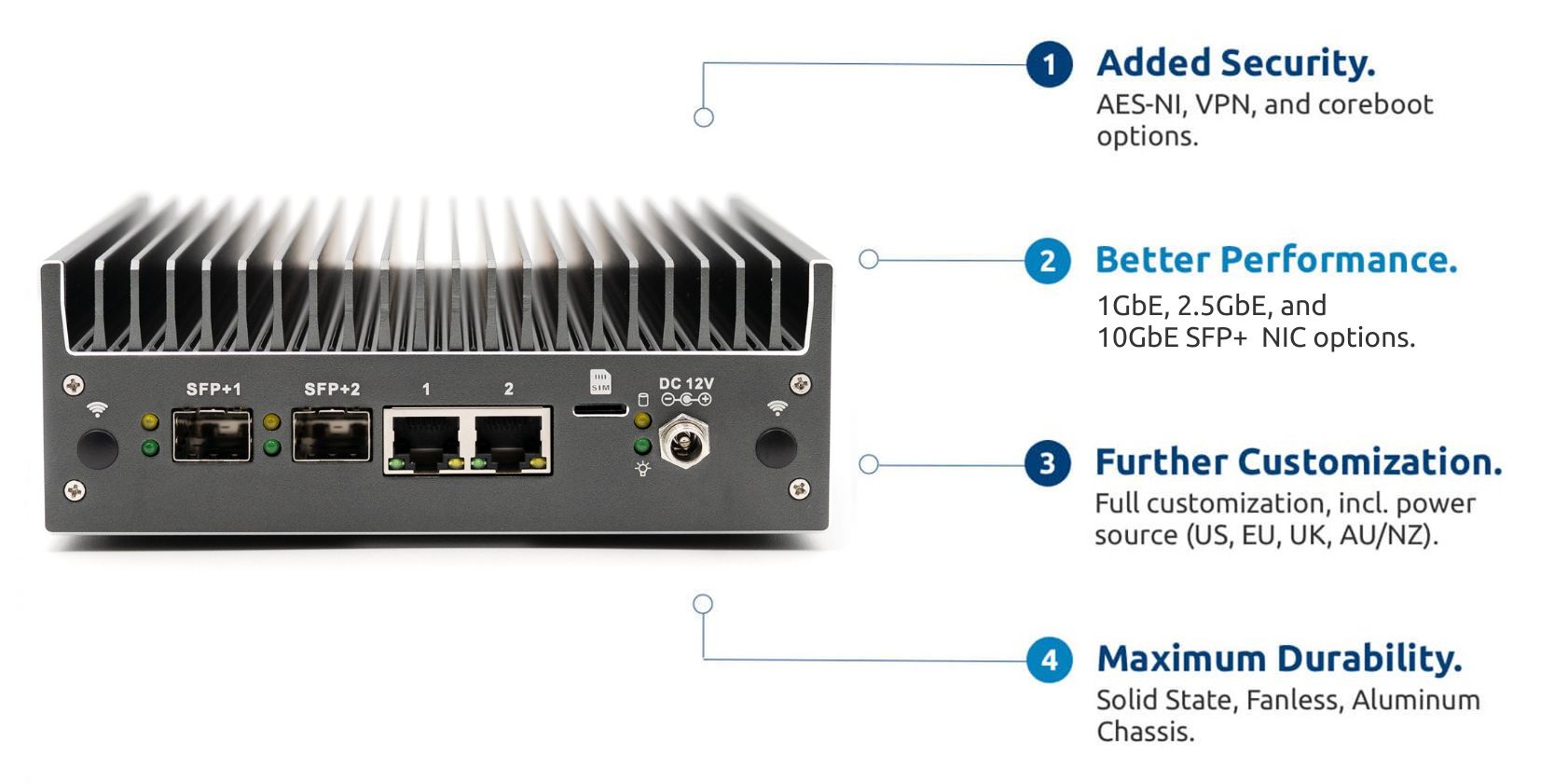

Features

The Vault is packed with features to ensure a solid network for you.

VP2410 features

Security

AES-NI, VPN, and coreboot options

Performance

Gigabit line rate performance on all units

vp2410

Customization

Full customization, incl. power source (US, EU, UK, AU/NZ)

Durability

Solid State, Fanless, Aluminum Chassis

coreboot Ready

Get maximum security, transparency, and auditability from your hardware with optional open source device firmware. Select between traditional AMI BIOS or coreboot during configuration.  Learn More >

Popular Add-Ons

Simply add when configuring your Vault.

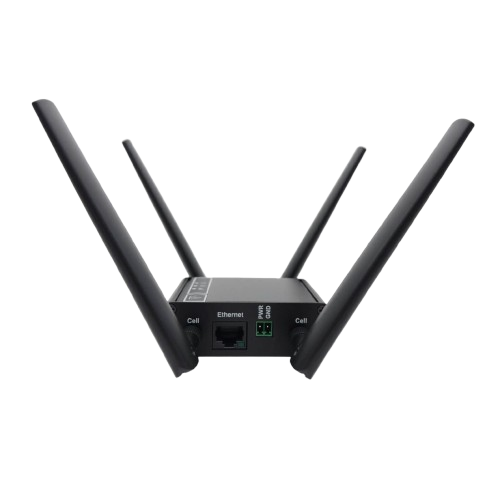

4G LTE Modem

Introducing Protectli 4G LTE Service: Add a 4G LTE cellular modem with an Ethernet connection with support for Verizon or AT&T. This is excellent for WAN Failover so you never lose network connectivity again.

Protectli offers both an internal and external 4G modem to choose from. Ethernet connectivity allows the 4G LTE Modem to be installed remotely from the Vault for optimum cellular reception. We will install the SIM, configure and test the unit before shipping to ensure connectivity with either AT&T, Verizon or Carrier Switching (T-Mobile and AT&T). Learn More >

Protectli IDG400 - 4G LTE Modem

Uninterruptible Power Supply (UPS)

It could happen anytime and you want to be prepared: The Protectli Uninterruptible Power Supply (UPS) can provide hours of power to keep your Vault running in the event of mains power failure.  Prevent unexpected shutdowns and unintended data or OS corruption.  The Protectli UPS is fully compatible with all Protectli 4-Port Vaults. Learn More >

Get Your 4 Port Vault

Free US Shipping on orders over $99. 30-Day Money Back Guarantee.

New icon
V1410 front

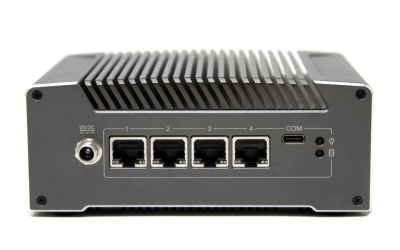

V1410 – 4x 2.5G Port Intel ® N5105

Quad Core turbo to 2.9GHz

on-board 8GB RAM

on-board 32GB eMMC

AES-NI

M.2 NVMe SSD

– coreboot available soon –

Starts at $249
VP2410 – 4x 1G Port Intel ® J4125

Quad Core burst to 2.7GHz

AES-NI

up to 16GB DDR4 RAM

M.2 SATA SSD

8GB eMMC on-board

– coreboot supported –

Starts at $279
Vault Pro VP2410
VP2420 – 4x 2.5G Port Intel ® J6412

Quad Core burst to 2.6GHz

AES-NI

up to 32GB DDR4 RAM

M.2 SATA SSD

16GB eMMC on-board

– coreboot supported –

Starts at $319
VP2420

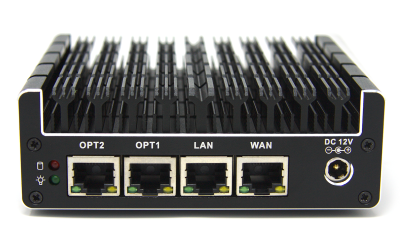

FW4B – 4 Port Intel J3160

Quad Core burst to 2.24GHz

AES-NI

up to 8GB DDR3 RAM

mSATA SSD

– coreboot supported –

Starts at $229
Protectli Firewall 4-Port
FW4C – 4x 2.5G Port Intel ® J3710

Quad Core burst to 2.6GHz

AES-NI

up to 8GB DDR3 RAM

mSATA SSD

– coreboot supported –

Starts at $249
Protectli Firewall 4-Port

2.5GbE Vaults:

V1410 – 4 Port Intel N5105

Quad Core turbo to 2.9GHz

4x Intel 2.5GbE Ports

8GB RAM included

32GB eMMC included

M.2 NVMe SSD

-coreboot supported-

Starts at $249

V1410 front
VP2420 – 4 Port Intel J6412

Quad Core burst to 2.6GHz

4x Intel 2.5GbE Ports

up to 32GB RAM

16GB eMMC included

M.2 SATA SSD

-coreboot supported-

Starts at $319

VP2420
FW4C – 4 Port Intel J3710

Quad Core burst to 2.6GHz

4x Intel 2.5GbE Ports

up to 8GB RAM

no eMMC

mSATA SSD

-coreboot supported-

Starts at $249

Protectli Firewall 4-Port

1GbE Vaults:

VP2410 – 4 Port Intel J4125

Quad Core burst to 2.7GHz

4x Intel 1GbE Ports

up to 16GB RAM

8GB eMMC included

M.2 SATA SSD

-coreboot supported-

Starts at $279

Vault Pro VP2410
FW4B – 4 Port Intel J3160

Quad Core burst to 2.24GHz

4x Intel 1GbE Ports

up to 8GB RAM

no eMMC

mSATA SSD

-coreboot supported-

Starts at $229

Protectli Firewall 4-Port

End of life / End of sale Vaults
