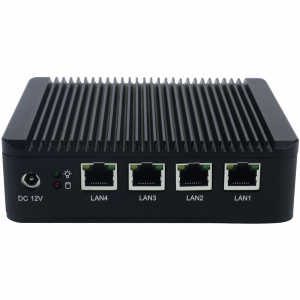

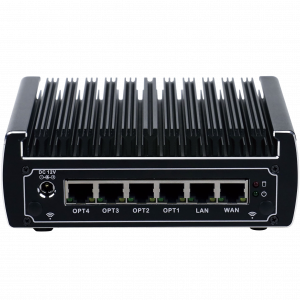

Description | 2 Network Port Fanless Appliance | 4 Network Port Fanless Appliance | 2 Network Port Fanless Appliance | 4 Network Port Fanless Appliance | 4 Network Port Fanless Appliance | 6 Network Port Fanless Appliance | 6 Network Port Fanless Appliance | 6 Network Port Fanless Appliance |
Processor | Intel Bay Trail-D J1800 (64 Bit, 2.4 GHz, 2 MB L2 Cache) | Intel Bay Trail-D J1900 (64 Bit, 2.0 GHz, 2 MB L2 Cache) | Intel Celeron J3060 (64 Bit, 2.4 GHz, 2 MB L2 Cache) | Intel Celeron J3160 (64 Bit, 2.24 GHz, 2 MB L2 Cache) | Intel Atom E3845 (64 Bit, 1.9 GHz 2 MB L2 Cache) | Intel Kaby Lake 3865U (64 Bit, 1.8 GHz 2MB Smart Cache) | Intel Kaby Lake i3-7100U (64 Bit, 2.4 GHz, 3MB SmartCache) | Intel Kaby Lake i5-7200U (64 Bit, 3.1 GHz, 3MB SmartCache) |
Processor Cores | 2 | 4 | 2 | 4 | 4 | 2 | 2 | 2 |
Processor Threads | 2 | 4 | 2 | 4 | 4 | 2 | 4 | 4 |
| | | | | | | | |
Memory | 1x SO-DIMM DDR3L-1333 1.35V (max 8GB) | 1x SO-DIMM DDR3L-1333 1.35V (max 8GB) | 1x SO-DIMM DDR3L-1600 1.35V (max 8GB) | 1x SO-DIMM DDR3L-1600 1.35V (max 8GB) | 1x SO-DIMM DDR3L-1333 1.35V (max 8GB) | 2x SO-DIMM DDR4-1866/2133 1.2V (max 32GB) | 2x SO-DIMM DDR4-1866/2133 1.2V (max 32GB) | 2x SO-DIMM DDR4-1866/2133 1.2V (max 32GB) |
Storage | 1x mSATA | 1x mSATA | 1x mSATA | 1x mSATA | 1x mSATA | 1x mSATA | 1 x mSATA | 1 x mSATA |
Optional Storage | Internal SATA Header | Internal SATA Header | Internal SATA Header | Internal SATA Header | Internal SATA Header | Internal 2.5" drive mount with SATA III Header | Internal 2.5" drive mount with SATA III Header | Internal 2.5" drive mount with SATA III Header |
Ethernet | 2x Intel 82583V 1000M LAN | 4x Intel 82583V 1000M LAN | 2x Intel i211-AT 1000M LAN | 4x Intel i210-AT 1000M LAN | 4x Intel 82583V 1000M LAN | 6x Intel 82583V 1000M LAN | 6x Intel 82583V 1000M LAN | 6x Intel 82583V 1000M LAN |
Graphics | Integrated Intel HD Graphics | Integrated Intel HD Graphics | Intel Clear Video HD Technology | Intel Clear Video HD Technology | Integrated Intel HD Graphics | Integrated Intel HD Graphics 610 | Integrated Intel HD Graphics 620 | Integrated Intel HD Graphics 620 |
Intel AES-NI | No | No | Yes | Yes | Yes | Yes | Yes | Yes |
WiFi | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional, Standard PCIe WiFi or 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) | Optional 802.11b/g/n Kit (Protectli P/N:WAP01K) |
| | | | | | | | |
External I/O | | | | | | | | |
Power Switch | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Power LED | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Ethernet RJ-45 | 2 | 4 | 2 | 2 | 4 | 6 | 6 | 6 |
USB | 1x USB 2.0, 1x USB 3.0 | 1x USB 2.0, 1x USB 3.0 | 2x USB 3.0, 4x USB 2.0
| 2x USB 3.0 | 1x USB 2.0, 1x USB 3.0 | 4x USB 3.0 | 4x USB 3.0 | 4x USB 3.0 |
Video DB-15 | 1x VGA | 1x VGA | 2x HDMI | 2x HDMI | 1x VGA | 1 x HDMI | 1 x HDMI | 1 x HDMI |
HDD LED | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
COM Port RJ-45 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Power Supply | DC - 12V, 3.33A | DC - 12V, 3.33A | DC - 12V, 3.33A | DC - 12V, 3.33A | DC - 12V, 3.33A | DC - 12V, 3.33A | DC - 12V, 5A | DC - 12V, 5A |
Power | Max 15W | Max 18W | Max 12W | Max 16W | Max 18W | Max 20W | Max 30W | Max 35W |
Chassis | Fanless Aluminum, Gray | Fanless Aluminum, Black | Fanless Aluminum, Black | Fanless Aluminum, Black | Fanless Aluminum, Black | Fanless Aluminum, Black | Fanless Aluminum, Black | Fanless Aluminum, Black |
Chassis Size | 5.3 x 4.9 x 1.4 in, 134 x 124 x 36 mm | 5.3 x 4.9 x 1.4 in, 134 x 124 x 36 mm | 4.5 x 4.3 x 1.5 in, 115 x 107.9 x 39 mm | 4.5 x 4.3 x 1.5 in, 115 x 107.9 x 39 mm | 5.3 x 4.9 x 1.4 in, 134 x 124 x 36 mm | 6.1 x 5 x 2 in, 155 x 126.5 x 52.5 mm | 6.1 x 5 x 2 in, 155 x 126.5 x 52.5 mm | 6.1 x 5 x 2 in, 155 x 126.5 x 52.5 mm |
Weight | 1.25 lbs, .57 Kg | 1.25 lbs, .57 Kg | 1.1 lbs, .5 Kg | 1.1 lbs, .5 Kg | 1.25 lbs, .57 Kg | 3.5 lbs, 1.6 Kg | 3.5 lbs, 1.6 Kg | 3.5 lbs, 1.6 Kg |
| | | | | | | | |
Mounting Options | Desktop, VESA | Desktop, VESA | Desktop, VESA | Desktop, VESA | Desktop, VESA | Desktop, VESA | Desktop, VESA | Desktop, VESA |
Operating Temperature | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) | -10C to 50C (14 to 122 F) |
Operating Humidity | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing |
Approvals | FCC Part 15 | FCC Part 15 | FCC Part 15 | FCC Part 15 | FCC Part 15 | FCC Part 15 | FCC Part 15 | FCC Part 15 |
