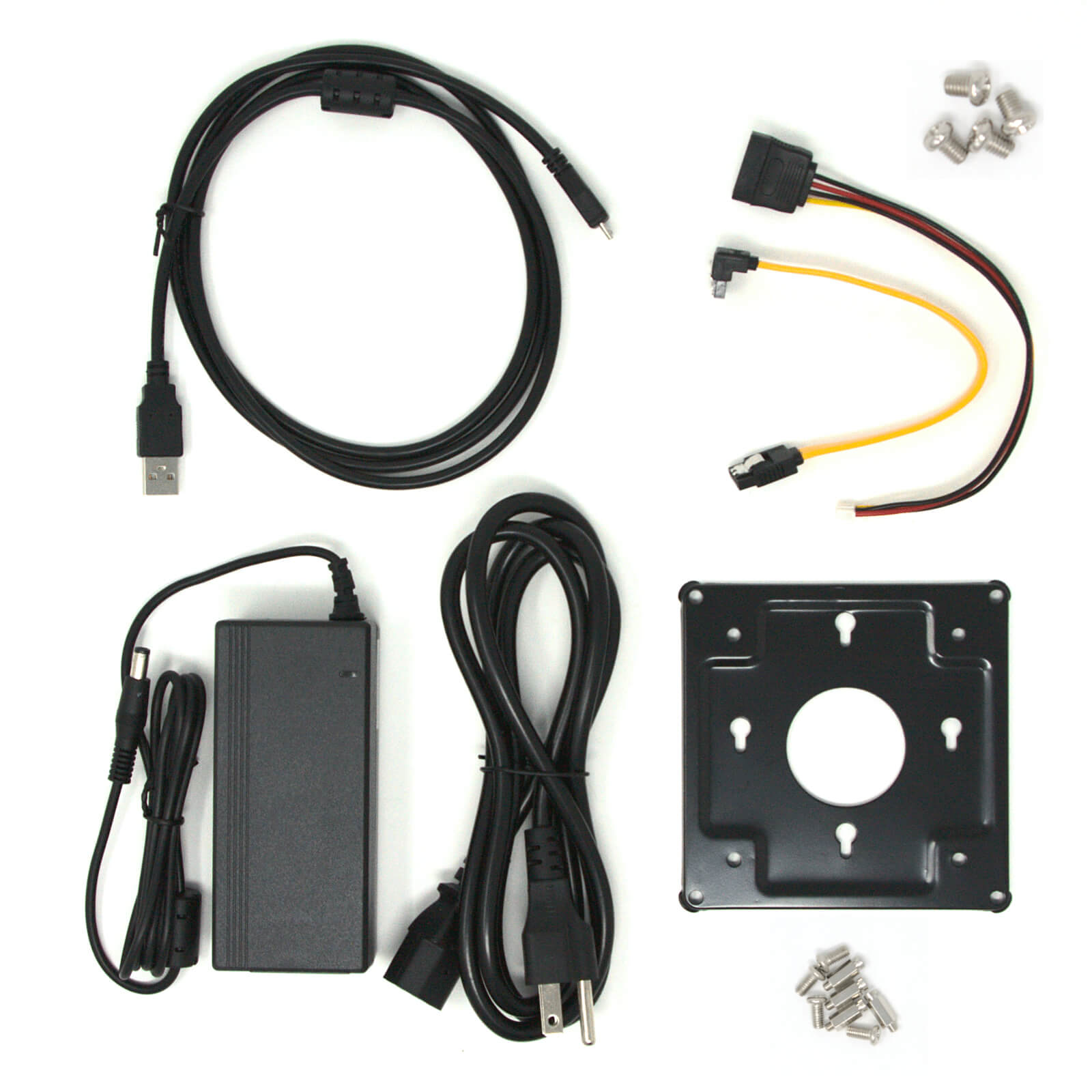

  4. Protectli Vault VP2410 / VP4630 accessories

VP4630 – 6 Port Intel® i3

$399.00

  • Intel® i3-10110U Dual Core / 4 Thread at 2.1 GHz (Turbo up to 4 GHz)
  • 6 Intel® 2.5 Gigabit Ethernet NIC ports
  • M.2 SSD Slot accomodates NVMe or M.2 SATA
  • 16GB eMMC module on board
  • Intel® AES-NI support
  • Fanless and Silent
  • Included 12v Universal Power Supply, VESA mount kit, Serial Console Cable, SATA data and power cables for internal SSD, Quick Start Guide

Vault Vault

VP4630 - Core

Product placeholder image
$399.00

In stock

Storage (M.2 NVMe or SATA SSD) Storage (M.2 NVMe or SATA SSD)

This Vault Pro supports either a standard SATA SSD, or a faster NVMe SSD in the M.2 slot.

  • No Storage (M.2 NVMe or SATA SSD)
  • 120GB Protectli M.2 SSD
    $43
  • 240GB Protectli M.2 SSD
    $60
  • 256GB Protectli NVMe
    $33
  • 480GB Protectli M.2 SSD
    $72
  • 500GB Kingston NV3 NVMe, PCIe 4.0
    $45
  • 1TB Samsung 980 NVMe, 1 TB
    $131
  • 1TB Kingston NV3 NVMe, PCIe 4.0
    $64
  • 1TB Protectli M.2 SSD
    $89
  • 2TB Kingston NV3 NVMe, PCIe 4.0
    $122
  • 4TB Kingston NV3 NVMe, PCIe 4.0
    $255

Storage (2.5" SSD) Storage (2.5" SSD)

  • No Storage (2.5" SSD)
  • 1TB Samsung 870 EVO
    $119
  • 2TB Samsung 870 EVO
    $199
  • 4TB Samsung 870 EVO
    $319

WiFi Module WiFi Module

This WiFi Module is not yet supported by BSD-based OSes. Please refer to our compatibility guide for more information.

  • No WiFi Module
  • 802.11ac/a/b/g/n M.2 WiFi Module

    ⚠️ This module is incompatible with the selected OS

    $49

4G LTE Modem 4G LTE Modem

  • No 4G LTE Modem
  • 4G LTE External Modem - Multi-Carrier
    $139
  • 5G LTE External Modem IDG450 - Multi-Carrier
    $399
  • 4G LTE Internal Modem Card - MDG200-M2
    $109
  • 5G Internal Modem Card - MDG230-M2
    $259

BIOS BIOS

  • AMI (Traditional) BIOS
  • coreboot (Open Source) BIOS

TPM TPM

Trusted Platform Module 2.0. Due to the nature of a TPM as a security device, the module cannot be returned for a refund.

  • No TPM
  • Protectli TPM
    $49

Power Cable Power Cable

  • US/CA
  • UK
  • EU
  • AU/NZ

In stock

Labels Labels

Port Reference Labels

  • No Labels
  • Port Reference Labels

Warranty Options Warranty Options

All Protectli Vaults now include a Standard 2-year Factory Warranty with the option to extend the Warranty by up to 3 years of additional coverage.

  • 2-Year Standard Warranty
    $0
  • 1-Year Extended Warranty (3-Year Total)
    $49
  • 2-Year Extended Warranty (4-Year Total)
    $98
  • 3-Year Extended Warranty (5-Year Total)
    $147

  • 1 Vault

    View
    VP4630 - Core
    $399.00
    In stock

  • 2 Memory

    Edit
    No selection
    $0.00

  • 3 Storage (M.2 NVMe or SATA SSD)

    Edit
    No selection
    $0.00

  • 4 Storage (2.5" SSD)

    Edit
    No selection
    $0.00

  • 5 WiFi Module

    Edit
    No selection
    $0.00

  • 6 4G LTE Modem

    Edit
    No selection
    $0.00

  • 7 BIOS

    Edit
    AMI (Traditional) BIOS
    $0.00

  • 8 TPM

    Edit
    No selection
    $0.00

  • 9 Power Cable

    Edit
    US/CA Power Cable (IEC Type "B")
    US/CA
    In stock
    $0.00

  • 10 Labels

    Edit
    No selection
    $0.00

  • 11 Warranty Options

    Edit
    2-Year Standard Warranty
    $0.00

$399.00

SKU: VP4630 Categories: ,

Description

The Vault is a small form network appliance built for use as a firewall / router, virtualization platform, a daily-driven personal computer, and more. The VP4600 line is the second phase of the Vault Pro series with higher performance and newer technology than the original FW series.

The VP4630 features an Intel 10th Generation CPU, i3-10110U, 6x Intel i225-V 2.5GbE Network ports, NVMe storage, and DDR4 DRAM.

The Vault uses standard Intel CPU and network ports which results in compatibility with a large variety of operating systems, including a number of open source firewall projects.  The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments.  Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool.

The VP4630 can accommodate up to 64GB DDR4 RAM in 2x DDR4 SODIMM slots and has an M.2 NVMe 2280 SSD storage slot in addition to a built-in 16GB eMMC module. There are also standard SATA data and power connectors and mounting brackets for an optional internal 2.5″ SATA SSD.

For more information on tested OS compatibility with the Vault, please see this link.
