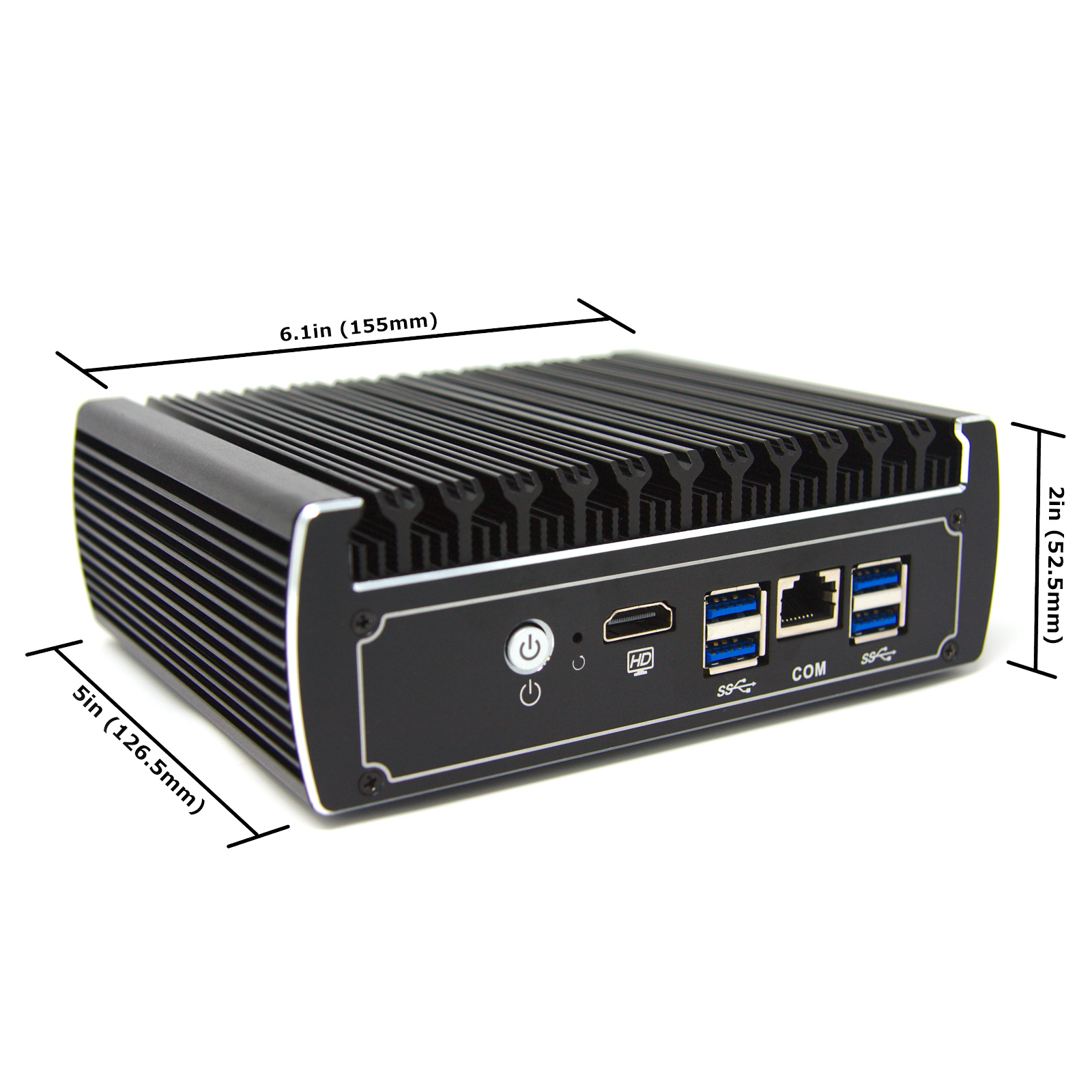

Name: FW6B - Core Unit
Brand: Protectli
SKU: FW6B-CORE
Price: 489.00 USD
Availability: BackOrder

Model

Models

FW6B

Processor

CPU	Intel Kaby Lake i3-7100U (64 Bit, 2.4 GHz, 2 Cores, 4 Threads, 3MB Smart Cache)
GPU	Integrated Intel HD Graphics 620
AES-NI	Supported

Memory and Storage

RAM	2x SO-DIMM Dual Channel DDR4-2133/2400/2666 (runs at 2133), Max 64GB
Storage	1x mSATA SSD, Max 1 TB
Optional Storage	1x Internal 2.5 in HDD

External I/O

Networking	6x Intel Gigabit Ethernet, RJ-45
USB	4x USB 3.0
Wireless	Optional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
COM Port	1x RJ45 COM Port
Display	1x HDMI
Power	Input 12V DC (5.5mm x 2.5mm barrel), Illuminated Power Button (Blue)
Power Indicator	1x Power LED (Green)
Activity Indicator	1x HDD Activity LED (Red)

Internal I/O

SATA	1x internal mSATA
Wireless	Optional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
CPU Fan Header	1x CPU Fan Header
Wireless Socket	1x MINI PCIe only for optional Protectli WiFi Kit

Chassis

Approvals

Emissions

FCC Part 15

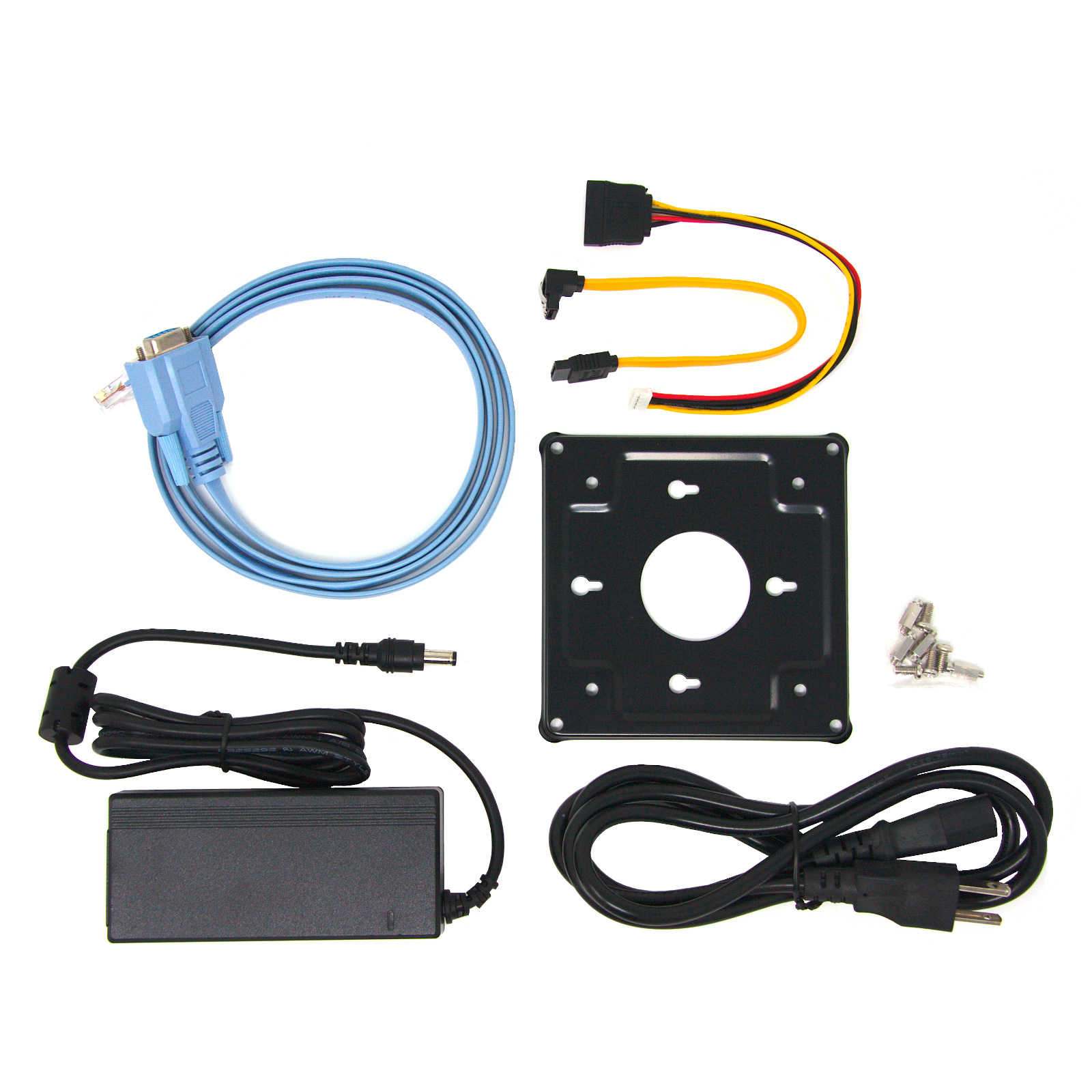

Peripherals and Accessories

External Mounting Bracket	1x VESA mounting bracket for monitor or wall
Power Supply	12V / 5A Switching Power supply (110-240V @ 50-60Hz)
Power Cord	US Power Cord (NEMA 5-15P, IEC 320 C13/C14)
SATA Cables	SATA data and power cables and 2.5 in HDD Internal Mounting Bracket
Serial Cable	1x RJ-45 to DB9 Serial Cable

Datasheet

FW6B – Core Unit
