How to Reset the Vault’s CMOS/BIOS

Last Updated On August 15, 2018
You are here:

The Vault’s CMOS is a small amount of battery backed memory that retains system information and settings that are used by the BIOS. The CMOS can occasionally get into a state where it needs to be reset in order to address odd behavior. ¬†This can occur due to an improper shutdown (see this FAQ) or other reasons. Symptoms of odd behavior on the Vault include:

  • Video output that is black, despite power being applied to the unit
  • Odd Performance issues
  • BIOS lockouts (setting and forgetting the BIOS Administrator or User Password)
  • Boot directly to BIOS without the Vault being able to recognize any connected drives
  • Other odd behavior

Resetting the CMOS restores the BIOS to the default settings and can sometimes resolve these types of issues.

To reset the CMOS/BIOS on the FW1, FW2, or FW4 series:

  • Verify the Vault is powered off
  • Open the Vault cover
  • Using a screwdriver or other metal tool, short the two pins shown in the photo below for about 10 seconds.

FW1, FW2, FW4A CMOS Reset Pins

To reset the CMOS/BIOS on the FW2B or FW4B series:

  • Verify the Vault is powered off
  • Open the Vault cover
  • Using a screwdriver or other metal tool, short the two pins shown in the photo below for about 10 seconds.

FW2B, FW4B CMOS Reset Pins

To reset the CMOS/BIOS on the FW6 series:

  • Verify the Vault is powered off
  • Open the Vault cover
  • Using a screwdriver or other metal tool, short the two pins shown in the photo below for about 10 seconds.

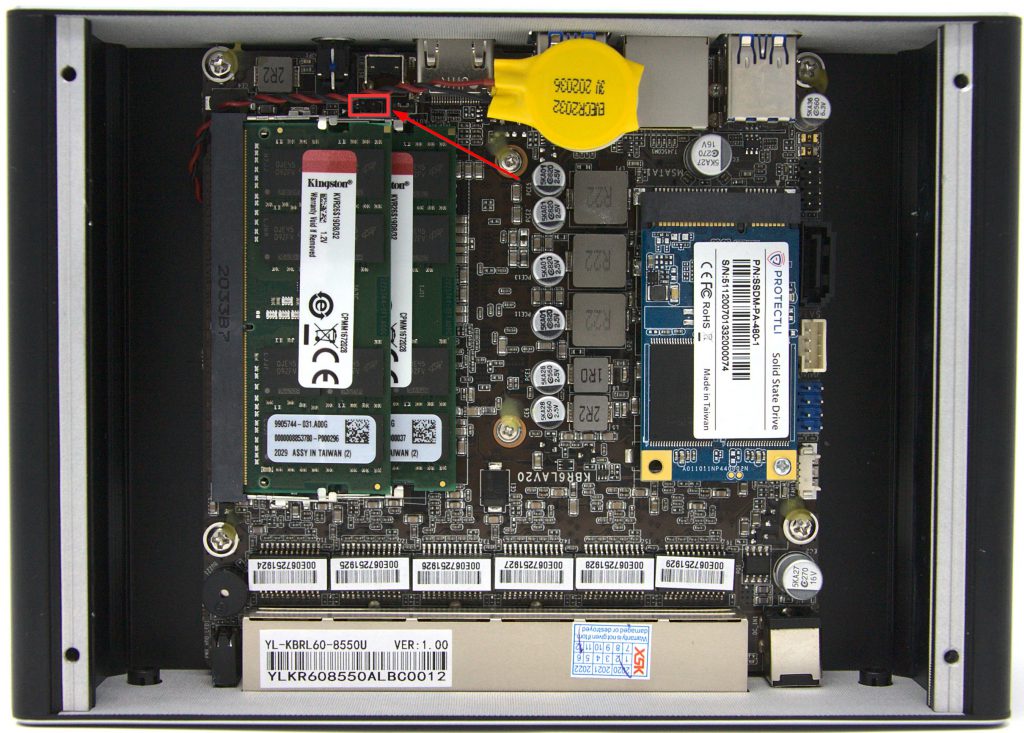

FW6 CMOS Reset Pins

After resetting, boot the Vault and verify that the system comes up correctly.

If the Vault does not boot and operate correctly, more advanced troubleshooting options may need to be used.
