• Intel i5 7200U Dual Core with Hyperthreading at 3.1GHz
  • 6 Intel® Gigabit 82583V Ethernet NIC ports
  • AES-NI
  • Fanless and Silent

Support and Documentation

This product is currently out of stock and unavailable.

SKU: FW6C Categories: , Tags: ,

Product Description

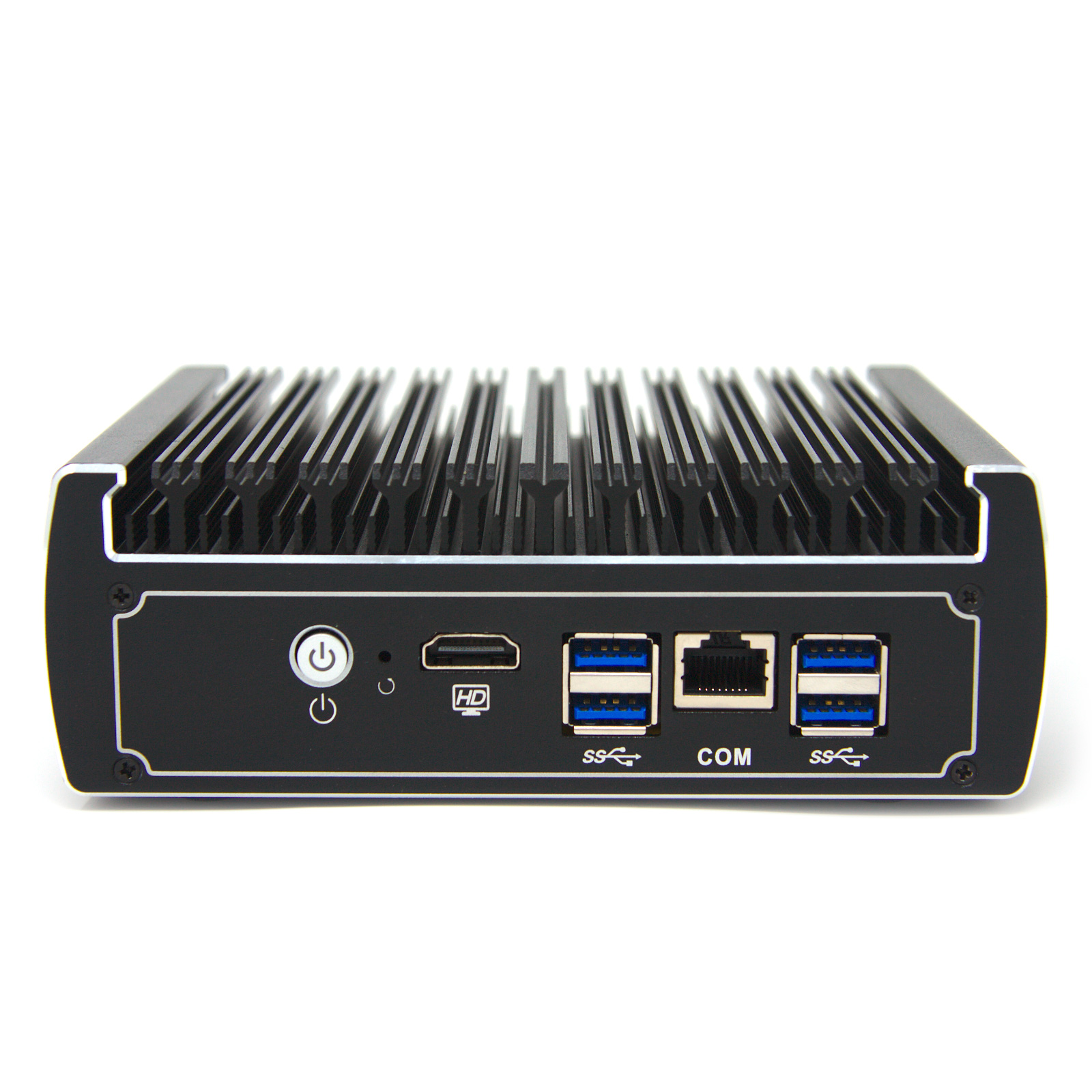

The Vault is a small form factor PC built for use as a firewall / router.  The FW6 is based on a 6 network port design that leverages a low power, but versatile Intel Kaby Lake i5-7200U CPU.  The Kaby Lake CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption.  The Vault uses standard Intel components (including Intel NIC ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects.  The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments.  Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool.  The enclosure also comes with pre-drilled holes for an available wireless kit (available here).

For more information on tested OS compatibility with the Vault, please see this link.



Model
Models FW6C-X-XX-XXX
Processor
CPU Intel Kaby Lake i5-7200U (64 Bit, 3.1 GHz Turbo, 2 Cores, 4 Threads, 3MB Smart Cache)
GPU Integrated Intel HD Graphics 620
AES-NI Supported
Memory and Storage
RAM 2x SO-DIMM Dual Channel DDR4-1866/2133, 1.2v, Max 32GB
Storage 1x mSATA SSD, Max 1 TB
Optional Storage 1x Internal 2.5 in HDD
External I/O
Networking 6x Intel 82583V Gigabit Ethernet, RJ-45
USB 4x USB 3.0
Wireless Optional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
COM Port 1x RJ45 COM Port
Display 1x HDMI
Power Input 12V DC, Illuminated Power Button (Blue)
Power Indicator Power LED (Green)
Activity Indicator 1x HDD Activity LED (Red)
Internal I/O
SATA 1x internal mSATA
Wireless Optional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)
CPU Fan Header 1x CPU Fan Header
Wireless Socket 1x MINI PCIe for USB WiFi
Chassis
Chassis Description Fanless, Aluminum, Black

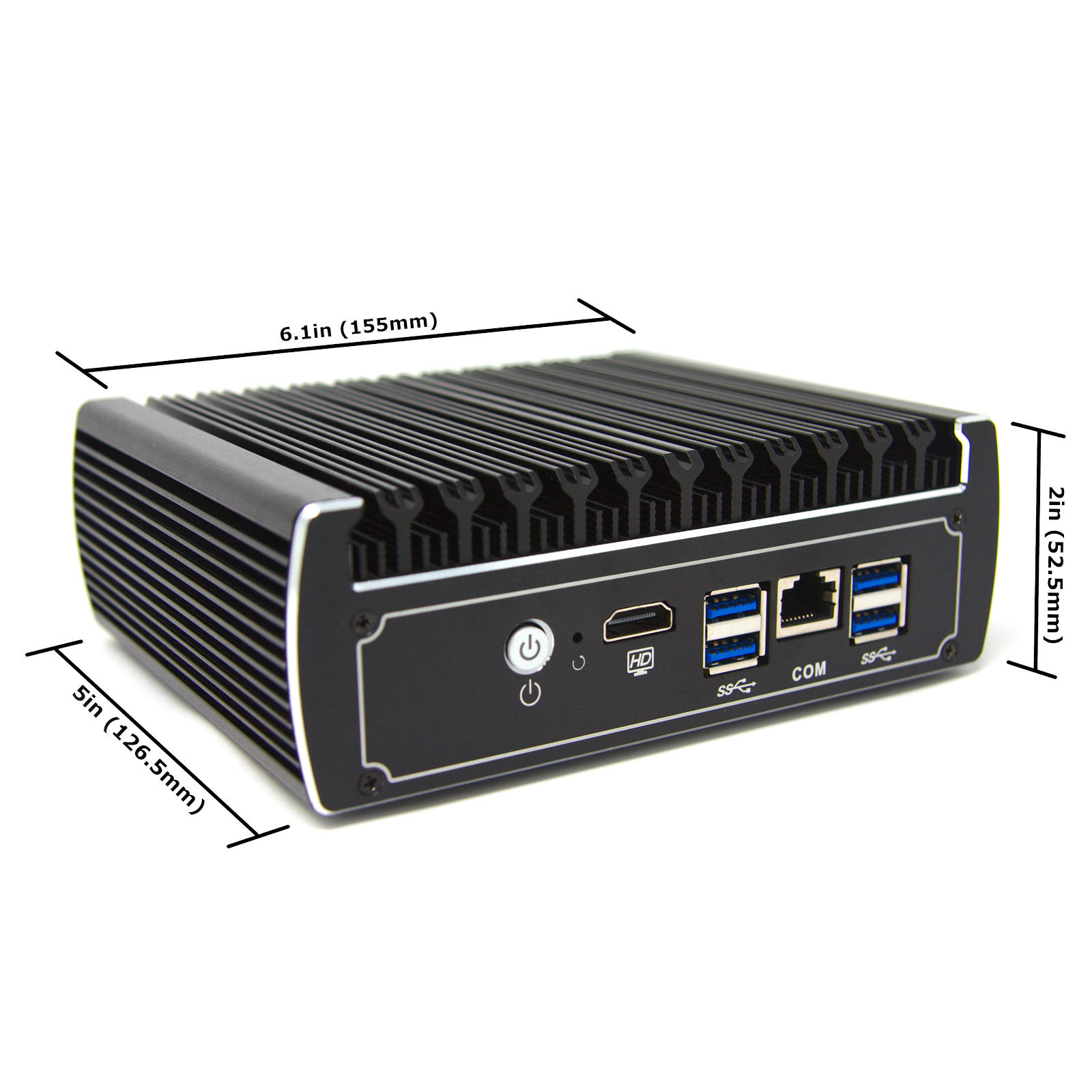

Dimensions 6.1x5x2.1 inches (155x126.5x52.5 mm)
Mounting Options Desktop, VESA
Weight 2.25 lbs, 1.0 Kg
Shipping Weight 3.75 lbs, 1.7 Kg
Max Power 35W
Approvals
Emissions FCC Part 15

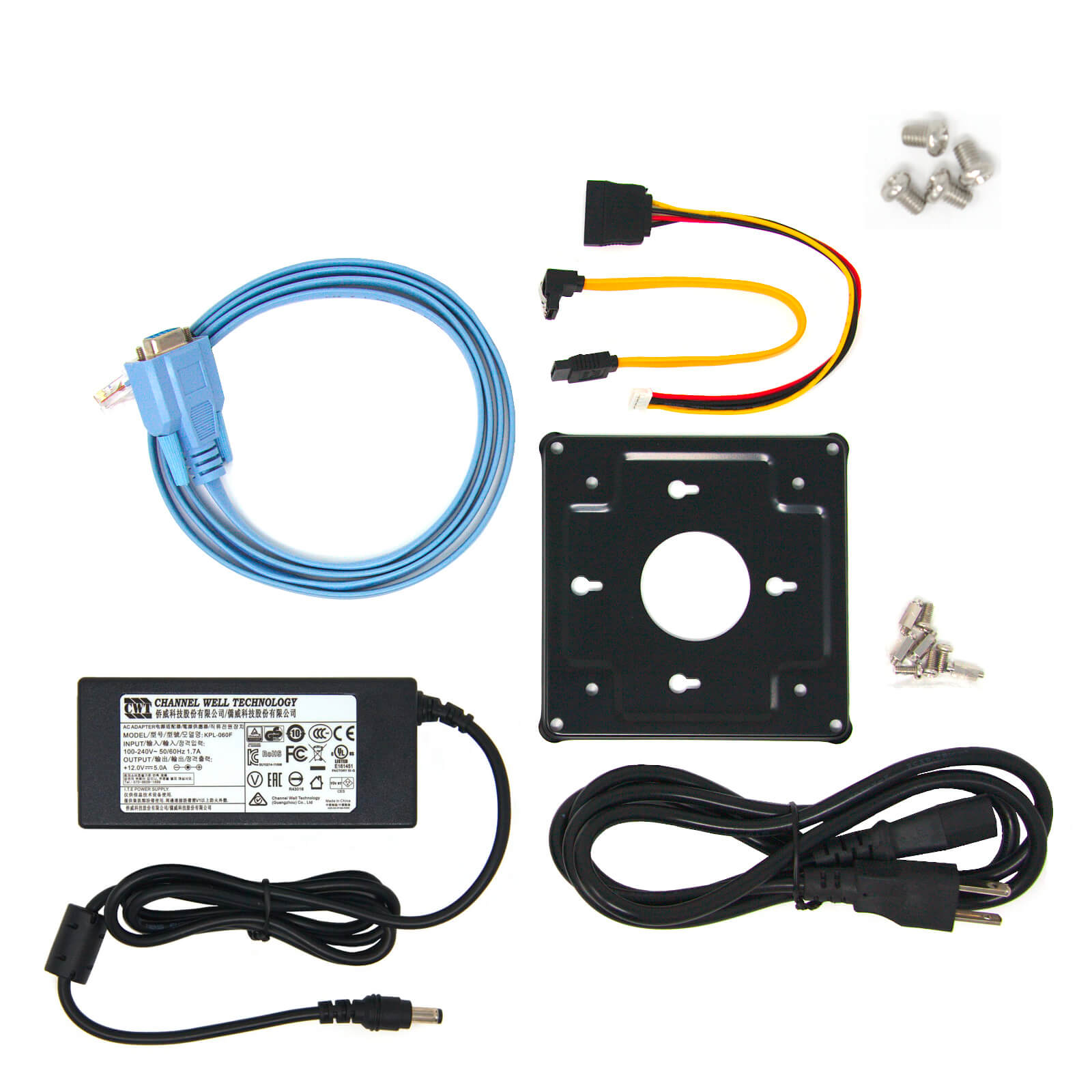

Peripherals and Accessories
External Mounting Bracket 1x VESA mounting bracket for monitor or wall
Power Supply 12V / 3.33A Switching Power supply (110-240V @ 50-60Hz)
Power Cord US Power Cord (NEMA 5-15P, IEC 320 C13/C14)
SATA Cables SATA data and power cables and 2.5 in HDD Internal Mounting Bracket
Serial Cable 1x RJ-45 to DB9 Serial Cable
